Elec 422: VLSI Design I

Rice University

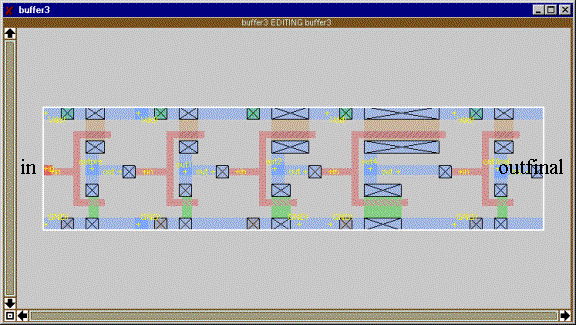

HSPICE Simulation from Magic Layout

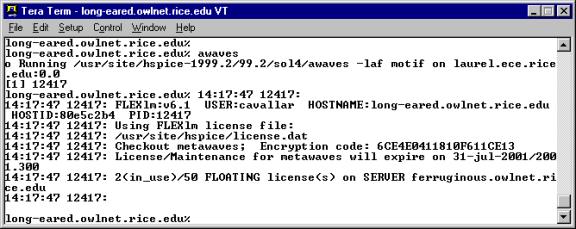

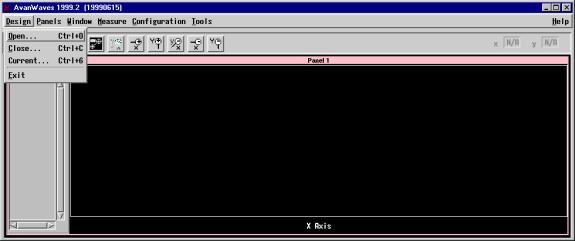

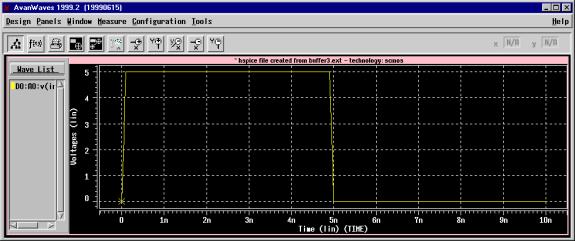

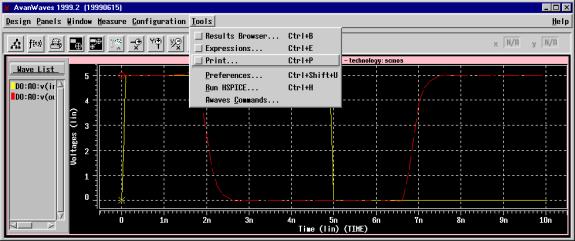

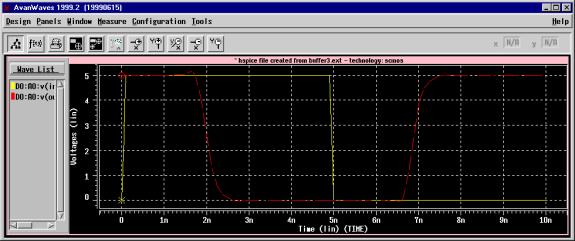

To access the “hspice” simulator and the “awaves” graphical display environment, please “register hspice” and also add to your .cshrc file these variable and then “source .cshrc”:

setenv LM_LICENSE_FILE ".:/usr/site/hspice/license.dat:"

setenv PATH /usr/site/hspice/99.2/bin:$PATH
