Cell Hierarchy
The following shows our cell hierarchy tree. The tree has been made to fit
in the browser window; as a result, nodes in all capital letters represent
large branches shown in a separate diagram.
Our cell hierarchy sometimes displays poor reuse, as cells were sometimes
reimplemented for speed or ease of routing.

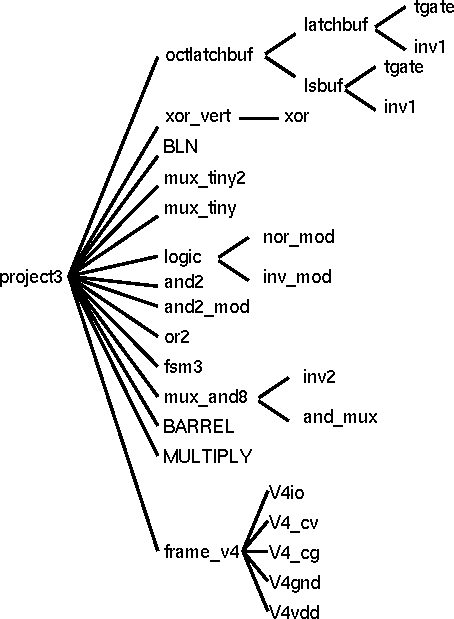

The top-level tree

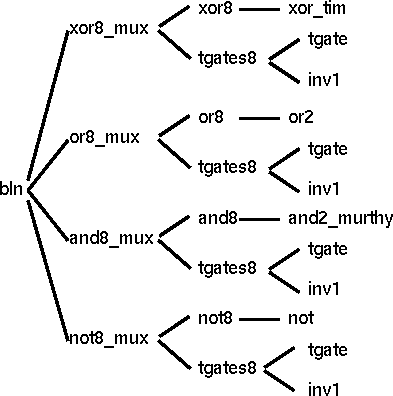

Boolean subtree

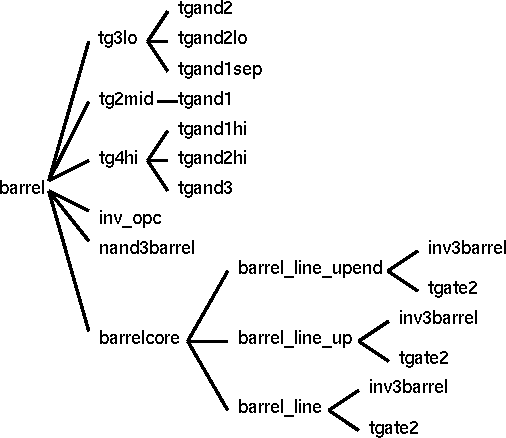

Barrel (shifter) subtree

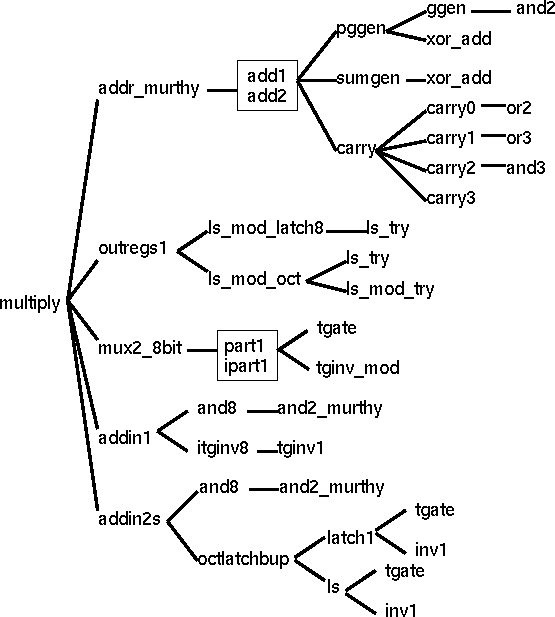

Multiply subtree
