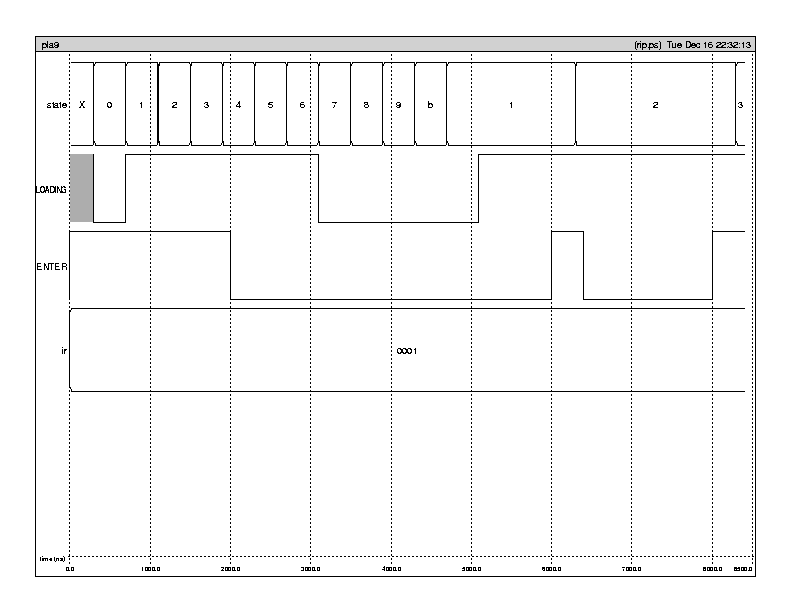

Test5: RIP instruction Command File, Result

Command File

clock clka 0 1 0 0
clock clkabar 1 0 1 1
clock clkb 0 0 0 1
clock clkbbar 1 1 1 0
vector ir ir3 ir2 ir1 ir0
vector state s1 s2 s3 s4

ana state loading enter ir

V RESTART 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

V LOADDONE 1

V ENTER 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0

V DMSEG 0
V IMSEG 0

V ir 0001

R

Notice:

• The PLA returns to state1 after executing the RIP
• The PLA waits for the ENTER signal in states 1 and 2
