| Part name | Full name | Feedback Nature | Used in... | Designed with... | Plot | Irsim Results | Spice Results |

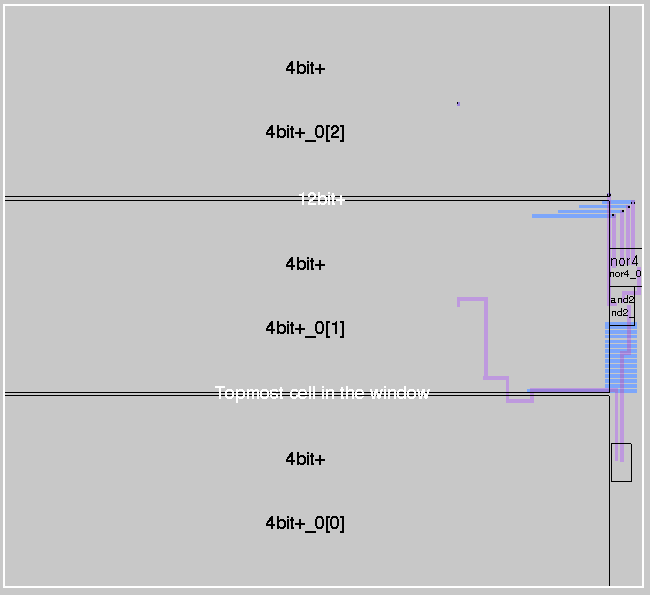

| 12-bit+ | 12-Bit Carry-Save Adder | Combinational | RADIX8 | Magic, Interconnecting Subcells | yes | yes | yes |

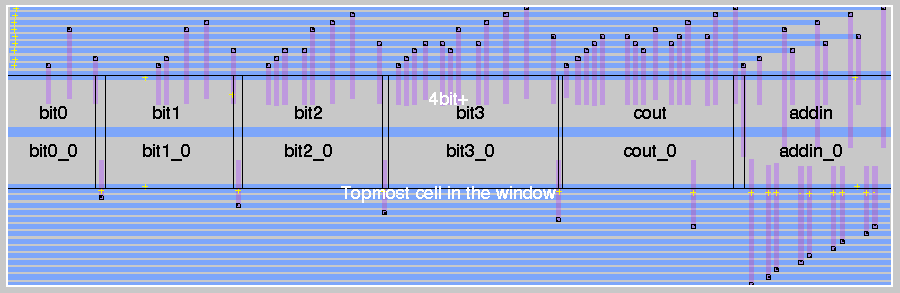

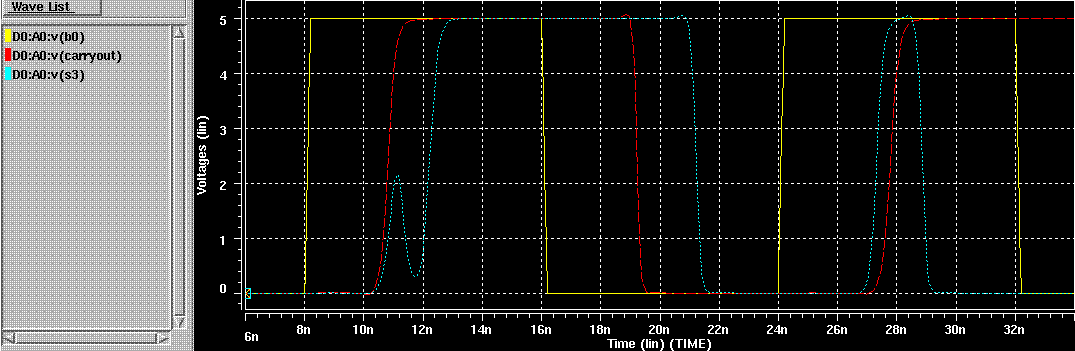

| 4-bit+ | 4-Bit Carry-Lookahead Adder | Combinational | 12-bit+ | Magic, Interconnecting Subcells | yes | yes | yes |
| 40p2200 | 40-Pin Padframe | Bidirectional Combinational | RADIX8 | (provided by instructor) | no | no | no |
| addbitin | Bitslice for Addin | Combinational | addin | Magic, Interconnecting Subcells | yes | yes | no |
| addin | Adder Pre-Processing Input Logic | Combinational | 4-bit+ | Magic, Interconnecting Subcells | yes | no | no |

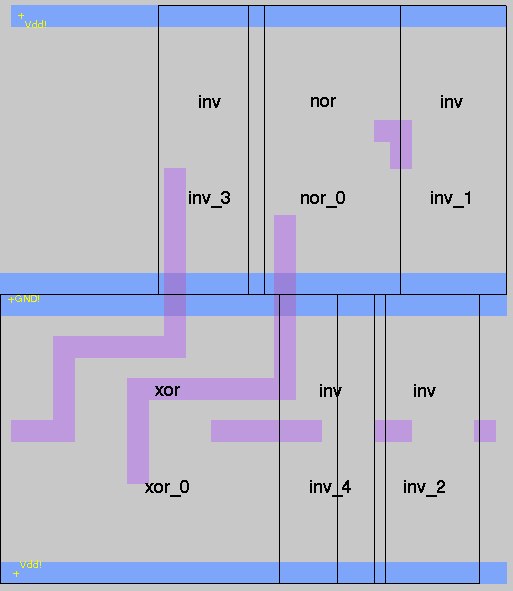

| bit0 | Carry-Lookahead Bit 0 | Combinational | 4-bit+ | Magic, Interconnecting Subcells | yes | no | no |

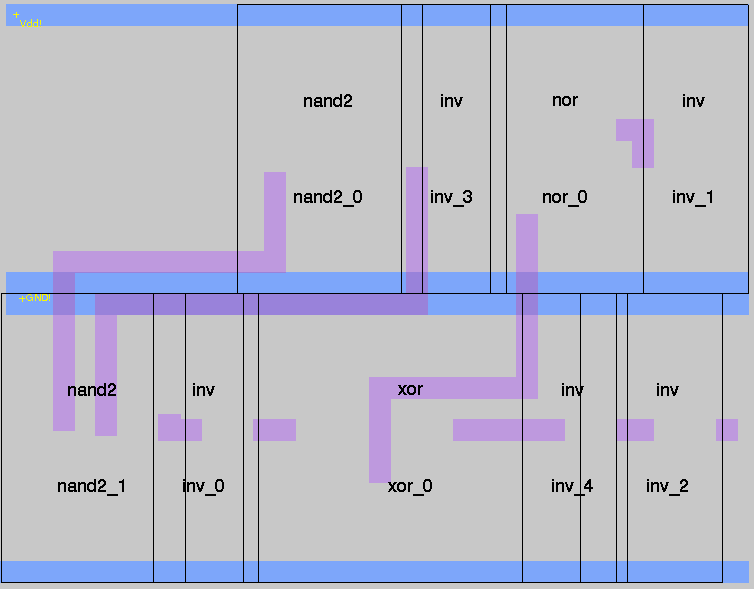

| bit1 | Carry-Lookahead Bit 1 | Combinational | 4-bit+ | Magic, Interconnecting Subcells | yes | no | no |

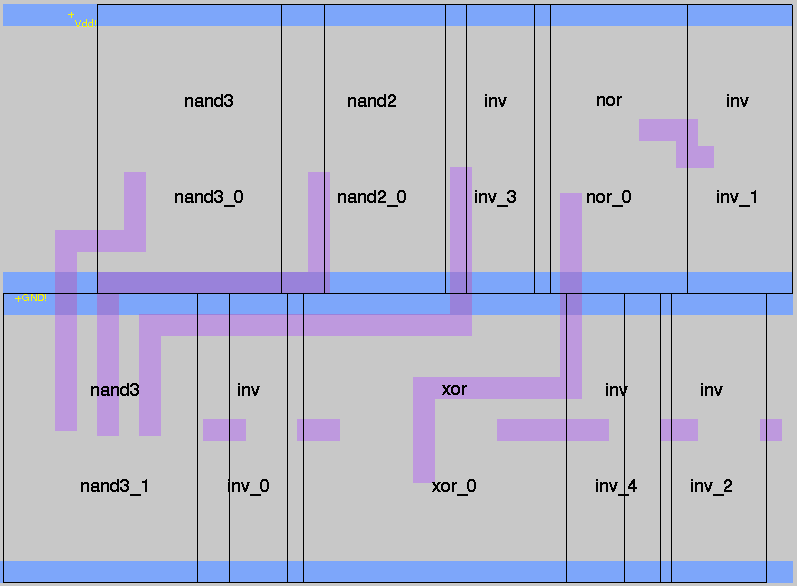

| bit2 | Carry-Lookahead Bit 2 | Combinational | 4-bit+ | Magic, Interconnecting Subcells | yes | no | no |
| bit3 | Carry-Lookahead Bit 3 | Combinational | 4-bit+ | Magic, Interconnecting Subcells | yes | no | no |
| cout | Carry-out Generator | Combinational | 4-bit+ | Magic, Interconnecting Subcells | yes | no | no |

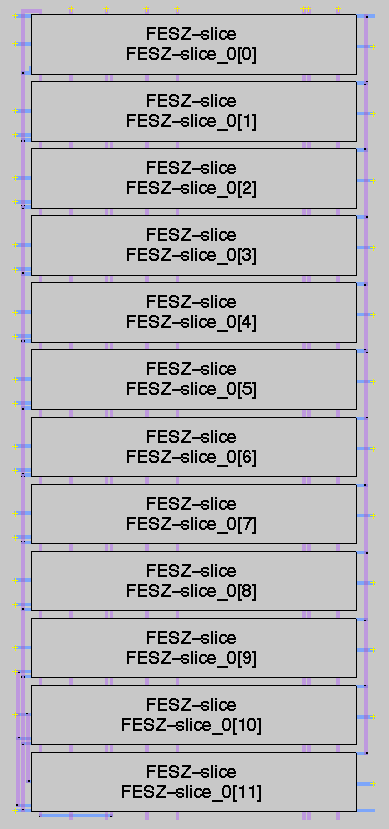

| FESZ | Flip-Extend-Shift-Zero Unit | Combinational | RADIX8 | Magic, Interconnecting Subcells | yes | yes | no |

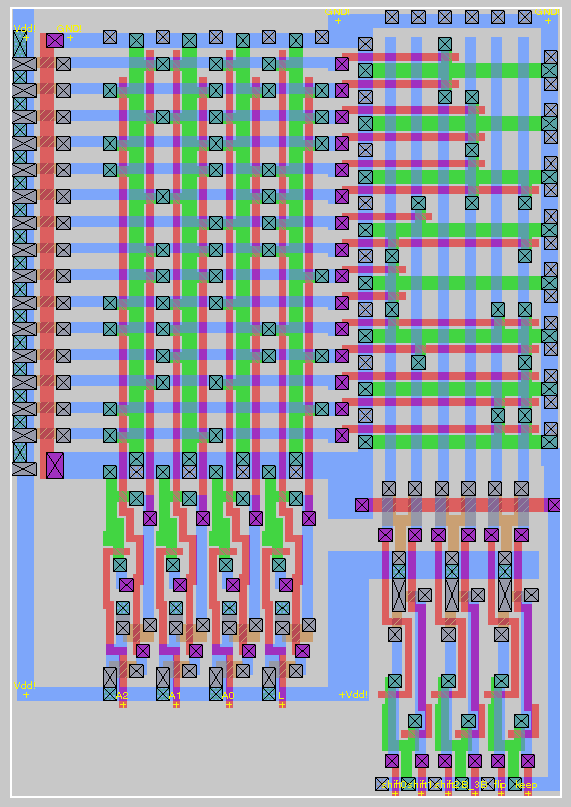

| FESZ-control | Decoder for FESZ Control Inputs | Combinational | RADIX8 | Truth Table File | yes | yes | yes |
| FESZ-slice | Bitslice for FESZ | Combinational | FESZ | Magic, Full Custom | yes | yes | yes |
| inv | Inverter | Combinational | addin, bit0, bit1, bit2, bit3, cout | Magic, Full Custom | yes | yes | no |
| latch | Resettable Latch | Latch | RADIX8 | Magic, Full Custom | yes | yes | no |
| mux | Multiplexer | Two-way Combinational | RADIX8 | Magic, Full Custom | yes | yes | no |
| NAND2 | 2-Input NAND Gate | Combinational | 12-bit+, bit1, bit2, bit3, cout | Magic, Full Custom | yes | yes | no |
| NAND3 | 3-Input NAND Gate | Combinational | bit2, bit3, cout | Magic, Full Custom | yes | yes | no |
| NAND4 | 4-Input NAND Gate | Combinational | bit3, cout | Magic, Full Custom | yes | yes | no |
| NAND5 | 5-Input NAND Gate | Combinational | cout | Magic, Full Custom | yes | yes | on |
| NOR | 2-Input NOR Gate | Combinational | 12-bit+, bit0, bit1, bit2, bit3 | Magic, Full Custom | yes | yes | no |
| NOR4 | 4-Input NOR Gate | Combinational | 12-bit+ | Magic, Full Cuctom | yes | yes | no |
| PLA | Control Programmable Logic Array | Latched Mealy Machine | RADIX8 | MEG File | yes | yes | yes |

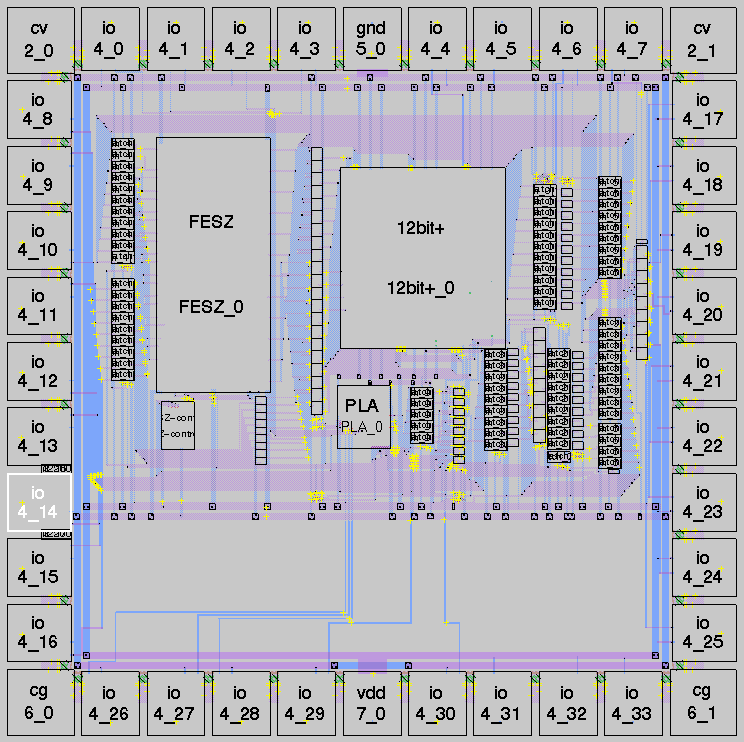

| RADIX8 | Entire Chip | Combination of I/O Pads and RADIX8c | (none) | Magic, Interconnecting Subcells | yes | yes | no |
| RADIX8c | Internals of Radix-8 Multiplier | Complex Interconnection of Subcells | RADIX8 | Magic, Interconnecting Subcells | no | no | no |
| XOR | 2-Input Exclusive OR Gate | Combinational | bit0, bit1, bit2, bit3 | Magic, Full Custom | yes | yes | no |
