ELEC 243 Lab

Before Lab

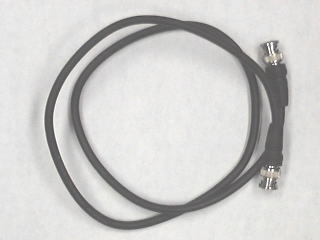

Last week we were able to use banana patch cords to make the connections we required. The components we will be using this week don't have banana connectors. Instead we will be using BNC cables and the breadboard and interface modules to make connections.

You should carefully study the workings of the breadboard and interface modules (later in this chapter and in the Lab Station Handbook), and even practice making a few connections before coming to lab.
