Welcome to the VLSI Design I class at Rice University - Fall 1997
Elec 422 at Rice is designed to impart to the students the
theory and application
of VLSI design. The course includes a design project,
where students design original circuits based on the material learned
in class. The chips will be fabricated by MOSIS, and tested in the next
class in this series, Elec 423 (VLSI II).
Handouts
Projects for Fall 1997:
- Raymond Walker, Seth Horwitz, Dennis Wu --
Group A
-

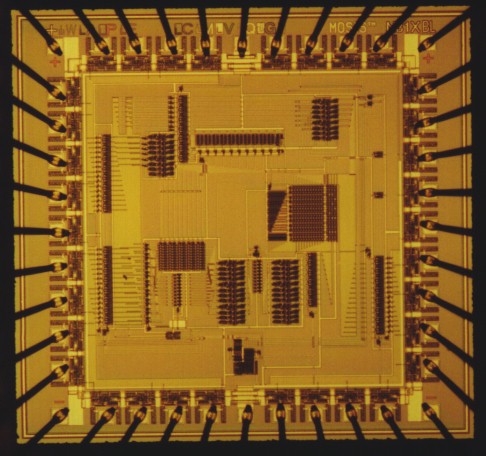

Sandman BL photo
- Vadim Kazakevich, Zinovy Pugach, Armen Kroyan --
Group B
- test results
-

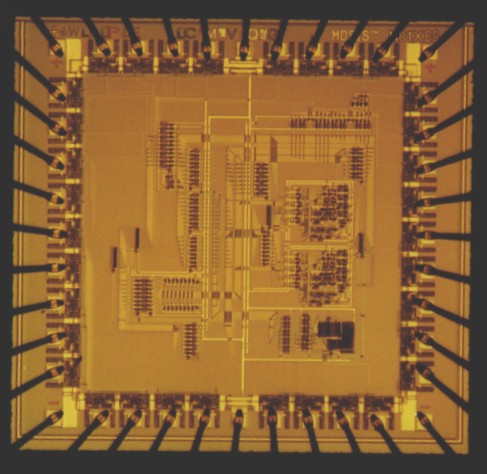

8b_alu BS photo
- Chris Hughes, Corey Pie' --
Group C
-

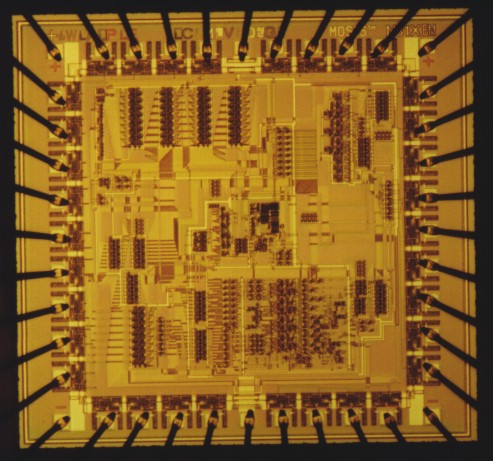

Pipe BM photo
- Dhananjay Joshi, Vishwas Sundaramurthy, Chu Xiang --
Group D
-

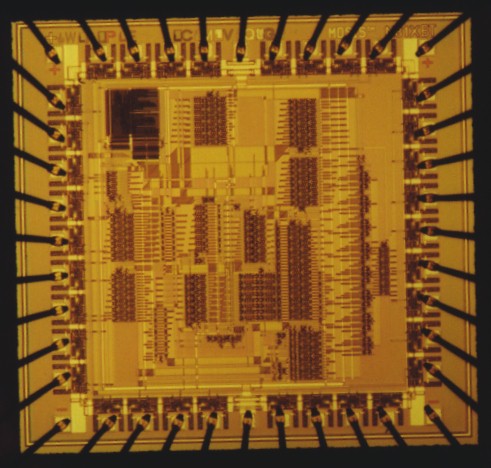

Alugobi BT photo
- Fulong Zhang, Samuel Swiderski, David Long --
Group E
-

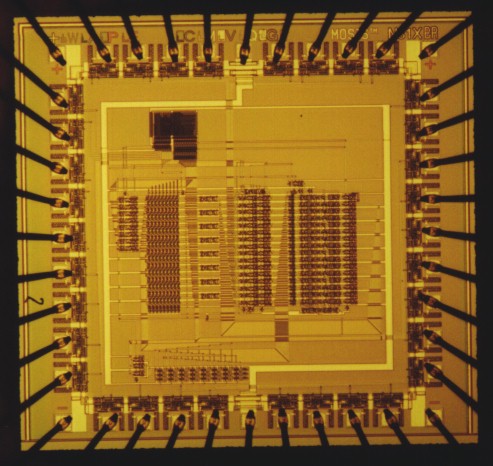

Alu_sqrt BR photo
- Shion Hung, Theodore Howard, Kurt Krukenberg --
Group F
-

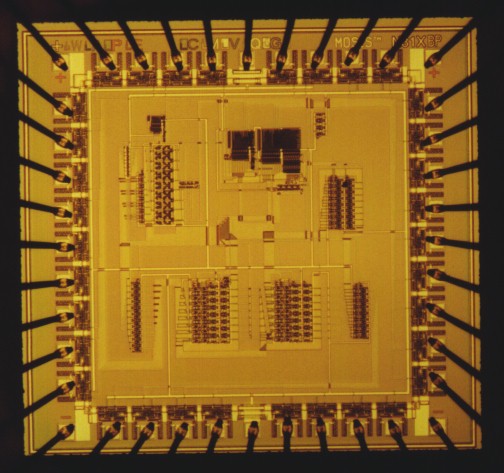

Enchilda BP photo
- Brian Chesney, Marcus Ramirez, Heungjoo Suh --
Group G
-

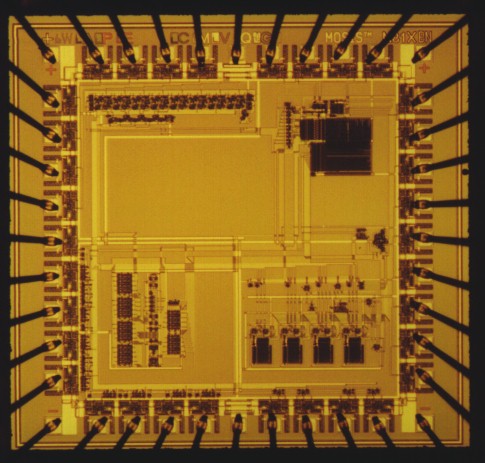

Nanny BN photo
- Rebecca Ma, Jill Nelson, Deborah Watt --
Group H
-

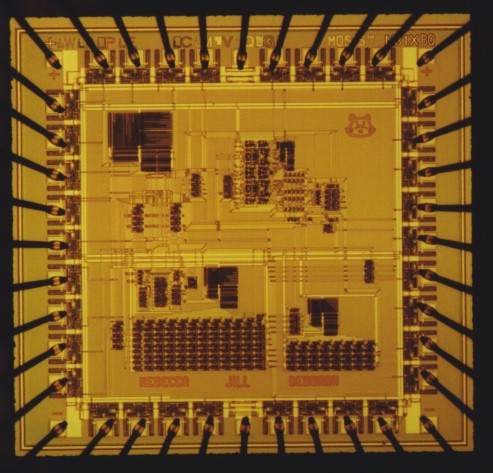

Chipmonc BQ photo
- Han Kim, Leel Favichia --
Group I
-

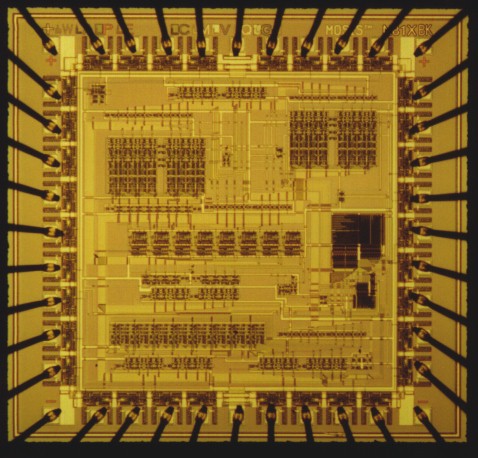

Vanilla BK photo
MOSIS Run Status
The fall 1997 projects were fabricated using the
AMI 1.2 micron CMOS process through MOSIS. The class
projects were included in the N81X MOSIS run.
The topics covered in this course include:
- Overview of combinational Logic and minimization
- Sequential logic and Finite State Machines
- Overview of semiconductor physics
- PMOS and NMOS transistors
- CMOS fabrication technology (crystal growth, wafers, lithography, masks, doping, etc.)
- Layout, design rules, stick diagrams
- The latch-up effect, prevention, well contacts
- Common structures (gates, compound gates, latches, shifters, PLA's)
- Clocking strategies, 2-phase non-overlapping clock, Karplus methodology
- Design Process - hierarchical design (regularity, modularity, locality)
- Design verification tools (simulators, netlist comparators, DRC checkers, etc.)
- MOS equations, second-order effects.
- Biasing, AC and DC characteristics, load lines
- Circuit parameters, parameter extraction
- Timing, power, and size tradeoffs
- Other CMOS structures: dynamic CMOS, pseudo NMOS, BiCMOS
- Introduction to testing and testability
- Analog CMOS
